Product Description

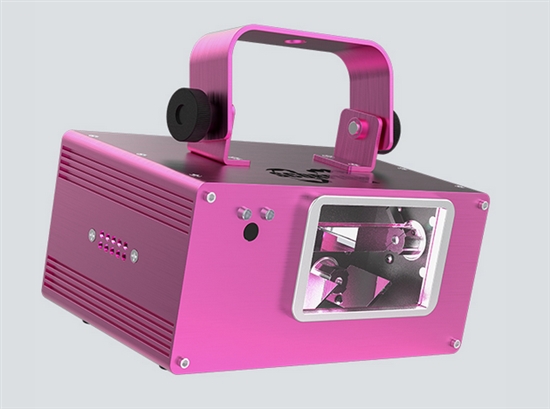

Imagine the visual drama of a Dual RGB FAT BEAM™ Aerial Effect Laser Light that lets you create perfect color combinations by mixing Red, Green, and Blue Laser Diodes—That’s the power of Scorpion Dual RGB. This laser has 32 built-in patterns, including the popular “Laser Sky” effect for breathtaking visuals, which are perfect for events with Fog or Haze. Scorpion Dual RGB features a unique dual mirror output with scan/speed adjustment, so you can generate customized ever-changing laser shows using programmable pan, tilt, and zoom effects with separate X, Y, and Z rolling images. This fixture is fully FDA Compliant, variance-free, and ready to use right out of the box. Easily operate Scorpion Dual RGB in automatic, Master/Slave, Manual, or Sound-Activated mode.

• DMX Channels: 10
• DMX Connectors: 3-pin XLR
• Pan and Tilt: 30°/30° (variable)
• Light Source: 638 nm/30mW (red) laser diode, 520 nm/20 mW (green) laser diode, 450 nm/ 50 mW (blue) laser diode
• Strobe Rate: 0 to 27 Hz
• Zoom Angle: 1° to 29°
• Coverage Angle: 36°
• Power Linking: 27 units @ 120 V; 48 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 20 W, 0.3 A @ 120 V, 60 Hz
• 19 W, 0.2 A @ 230 V, 50 Hz
• Weight: 3.8 lb (1.7 kg)
• Size: 8.5 x 7 x 6.3 in (216 x 179.5 x 161 mm)
• Approvals: CE, FDA
• Bracket Mounting Hole: M12
• Ambient Operating Temperature: 59 °F to 95 °F (15 °C to 35 °C)
• Classified per 21 CFR 1040.10 & .11
• Complies with US FDA CDRH laser safety standards 21 CFR 1040.10 & 1040.11
• Optional Controllers: IRC-6

Shop for all Chauvet DJ products like the SCORPIONDUALRGB at the lowest prices with LED Lighting Wholesale Inc. Call for lower pricing starting at quantities of 4pcs. or more!
